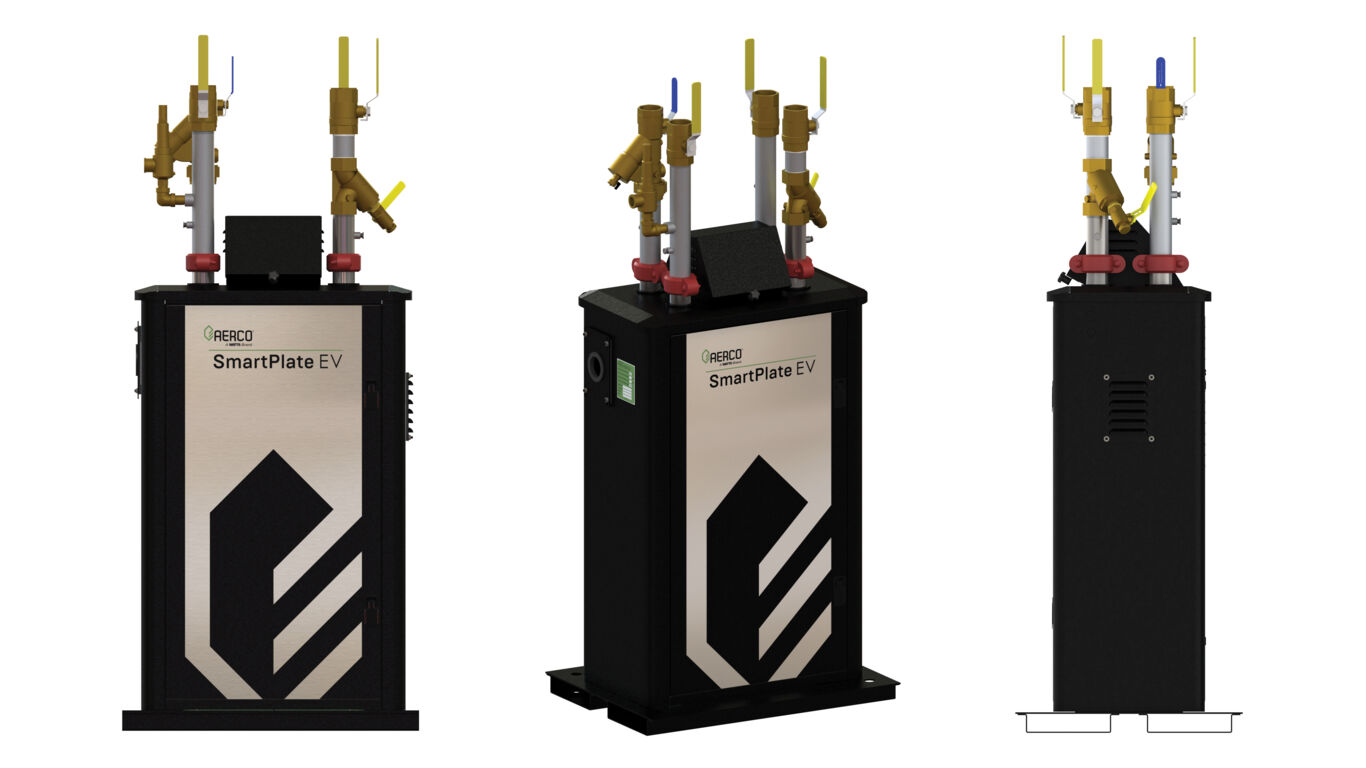

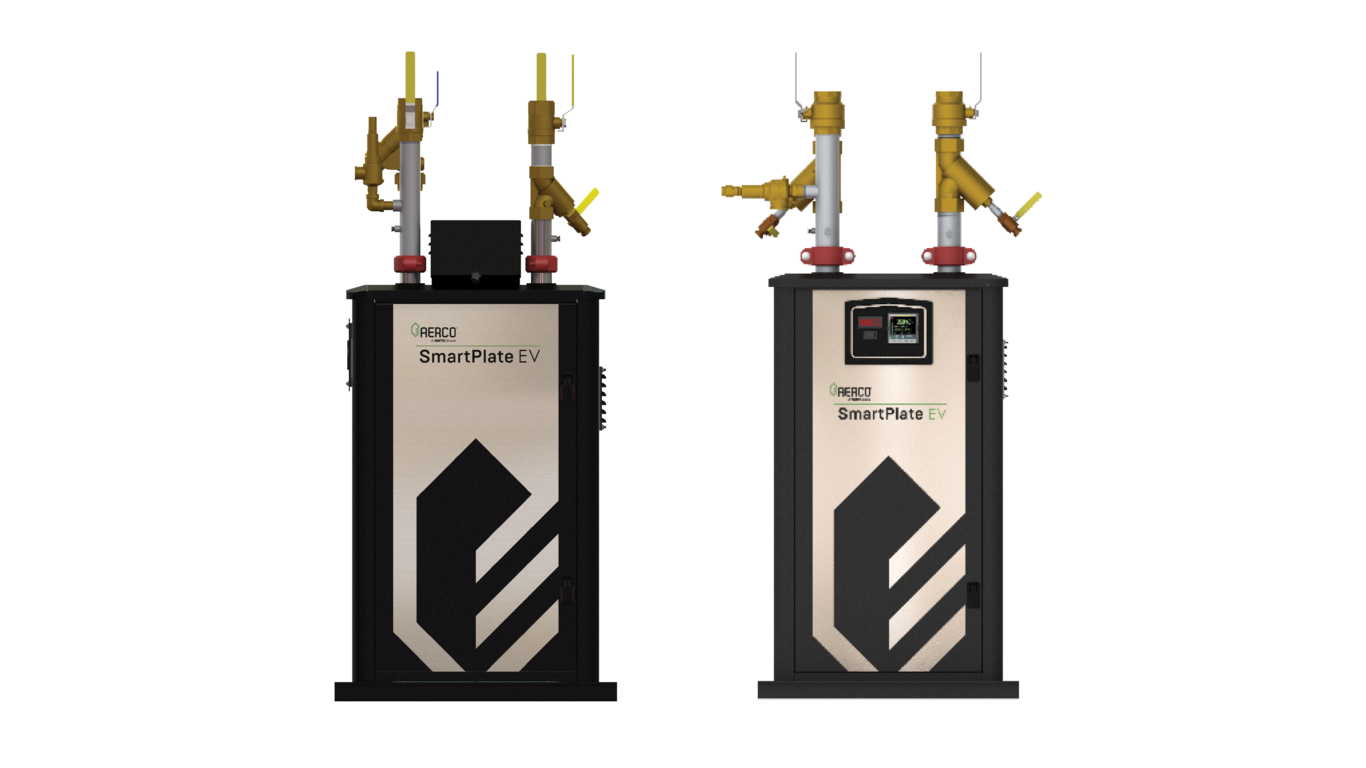

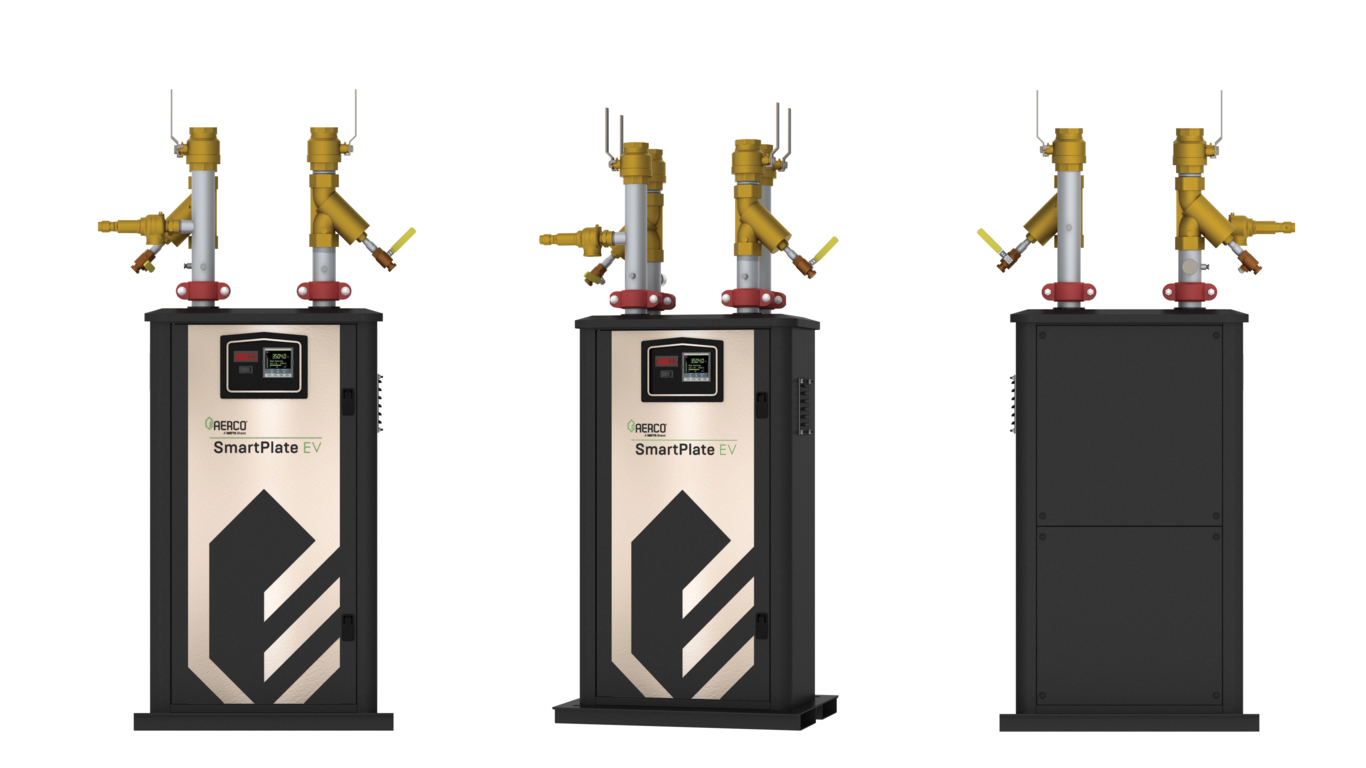

SmartPlate EV

  • Brazed plate double wall water heaters
  • Turn-key tankless solution that ships fully assembled
  • Five sizes up to 4500 MBH



Packaged Heater

Shipped completely assembled and ready for immediate hook-up; includes heat exchanger, full controls package with 3-way electronic control valve. The package can be operated in 2-way or 3-way configurations.



Electronic Controls

AERCO's exclusive electronic control system combines a control box assembly with all circuitry, a flowmeter installed at the cold water inlet for feed-forward sensing, feedback sensors and voltage regulator. To maintain optimal temperature control, the system utilizes PID algorithms to monitor outlet temperature and change control valve position. The system also includes an overtemp limit switch.



Modbus Communications

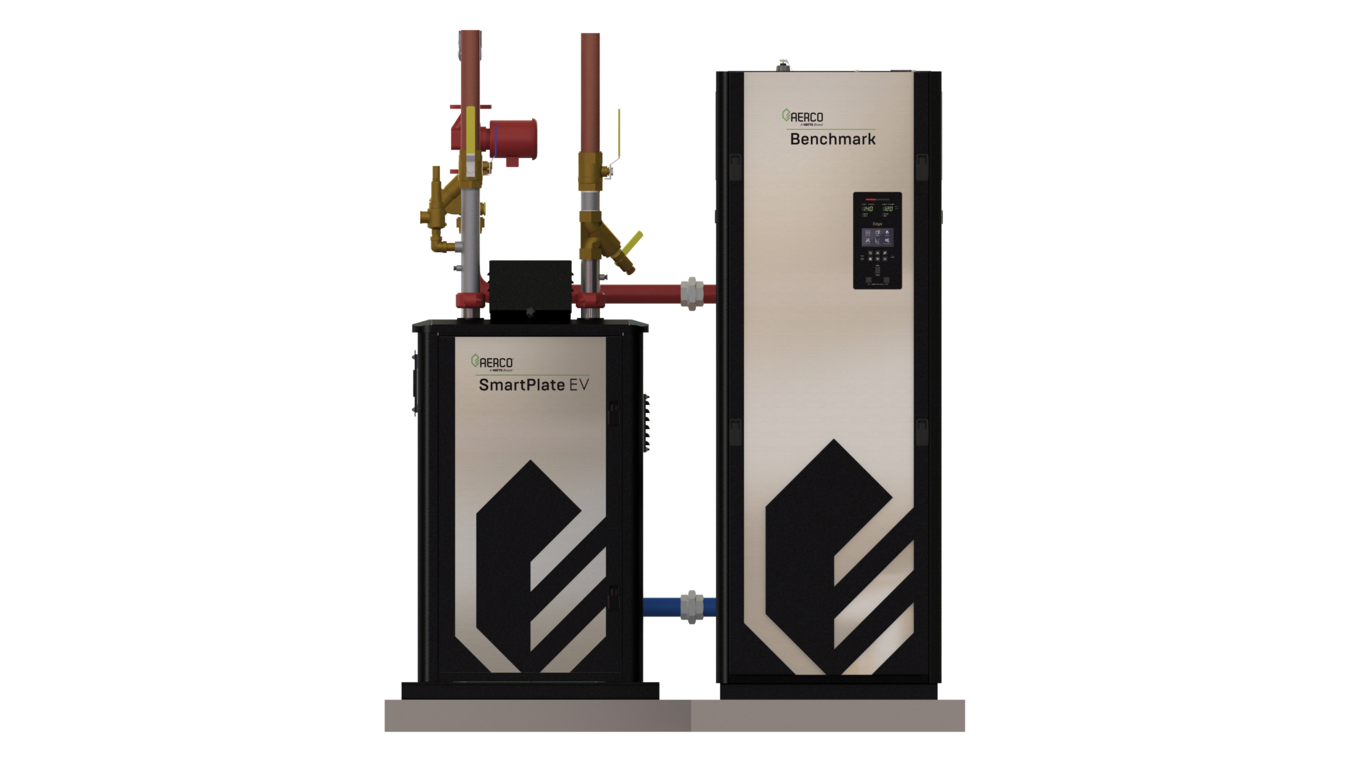

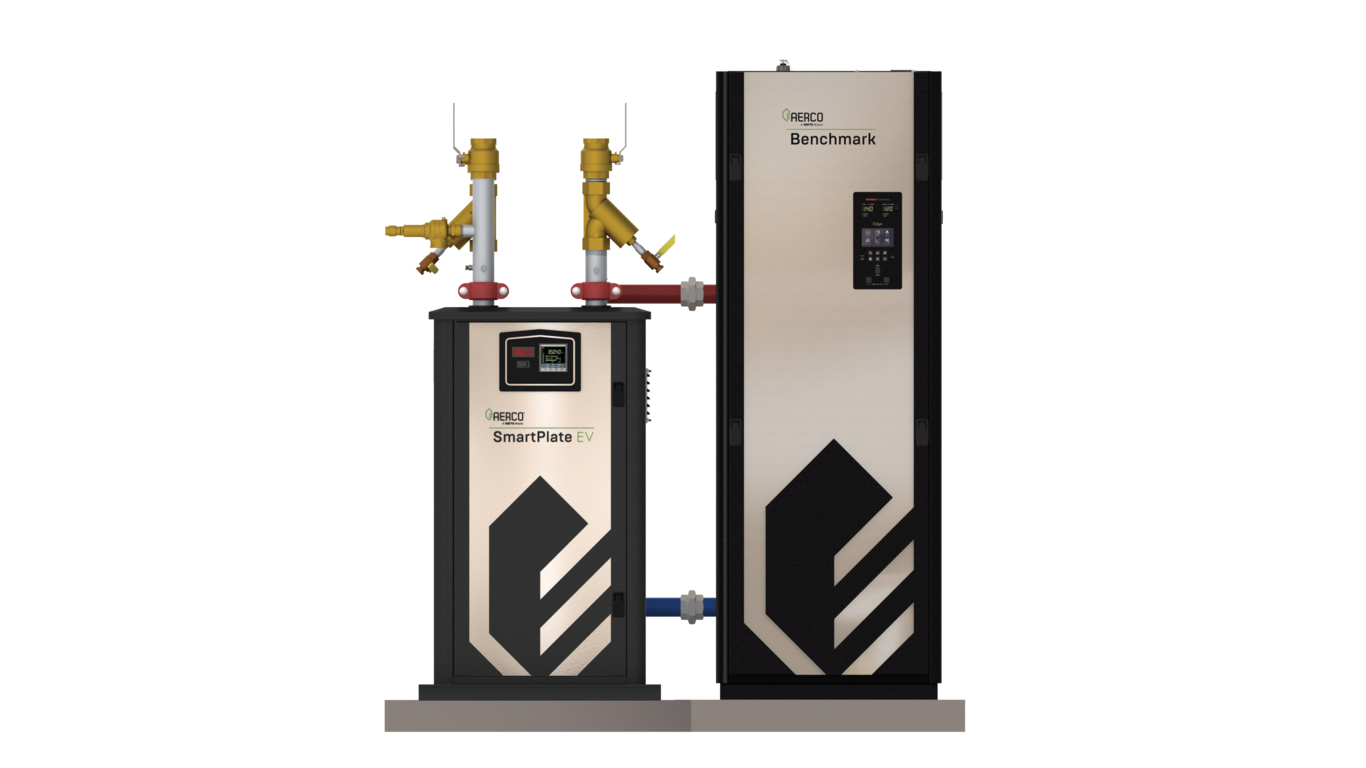

The SmartPlate EV includes Modbus RS485 communications to daisy chain with a Benchmark or Benchmark Platinum boiler plant and to connect to Building Automation or Energy Management Software.



Dry Contacts

Included terminals for remote "High Limit Tripped Status" indication.
