Modulex EXT for Military Bases

Modulex EXT for Military Bases

This installation at a Military Base incorporated quiet, outdoor-rated Modulex EXT boilers to provide reliable space heating to maximizes efficiency with its internal, modular redundancy and superior turndown.

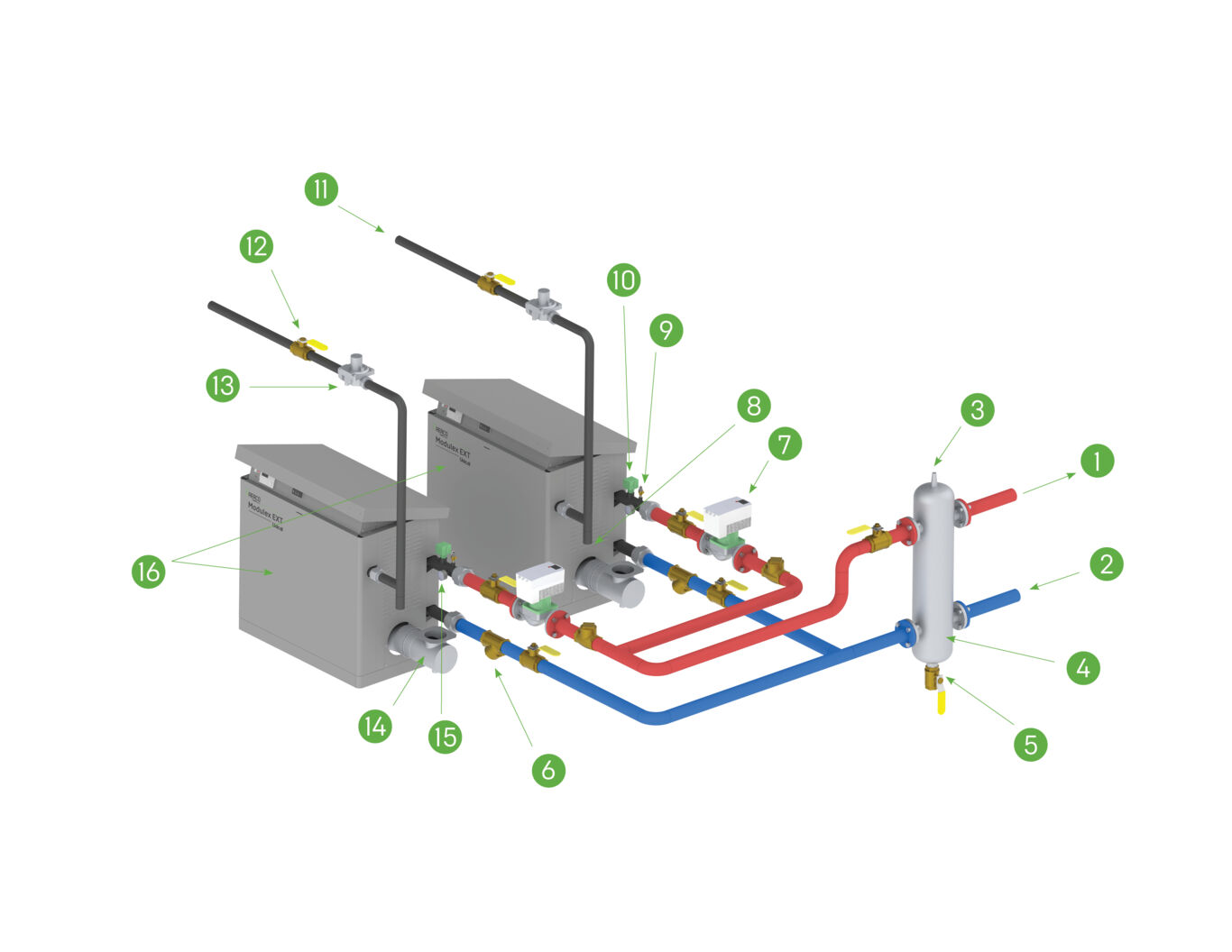

  1. Secondary/System Return
  2. Secondary/System Supply
  3. Air Vent
  4. Hydraulic Separator
  5. Drain Valve
  6. Mandatory Boiler Strainer
  7. Mandatory Primary Pump
  8. Dirt Trap
  9. Relief Valve
  10. Flow Switch
  11. Gas Supply
  12. 3” Manual Shut-off Valve
  13. Gas Pressure Regulator
  14. Exhaust Connection
  15. Tridicator
  16. Modulex EXT Boilers
