Modulex Maintenance Kits
Modulex Maintenance and Fireside Inspection Kits

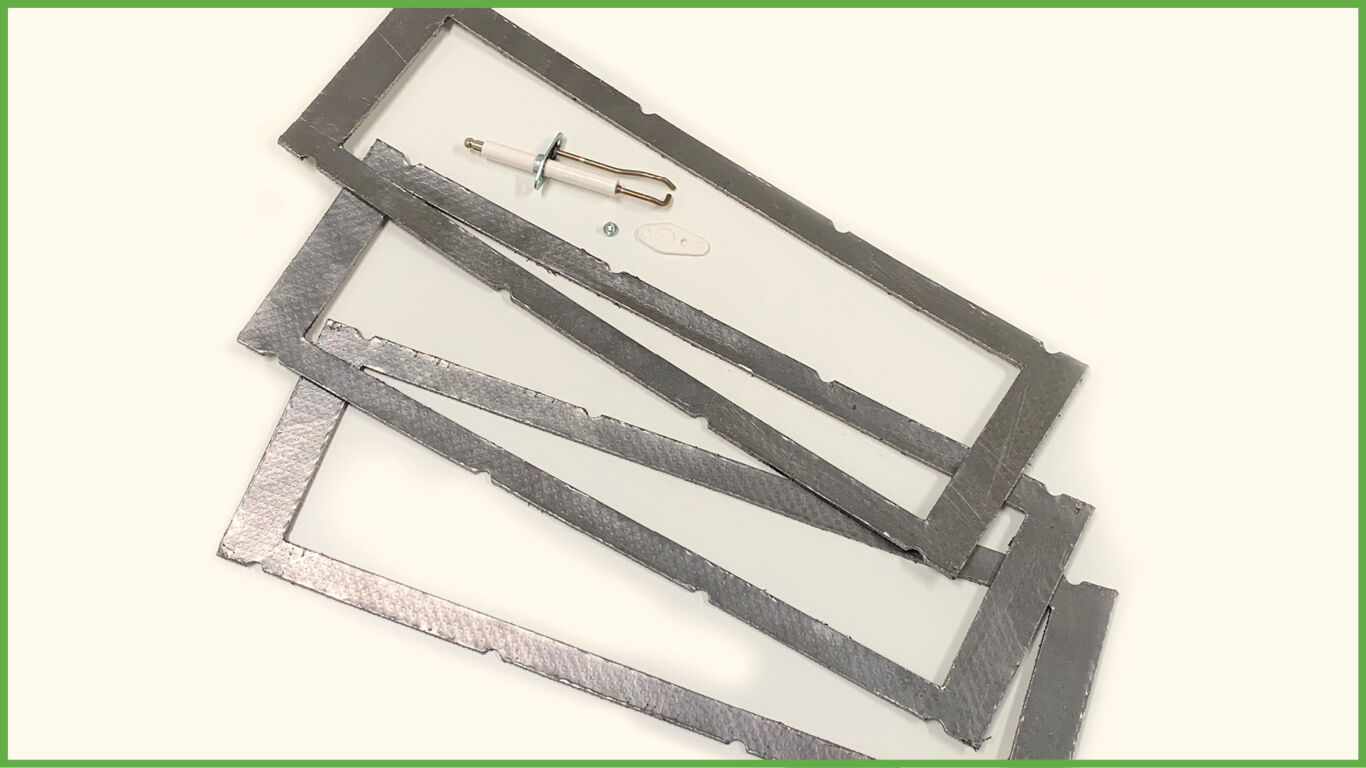

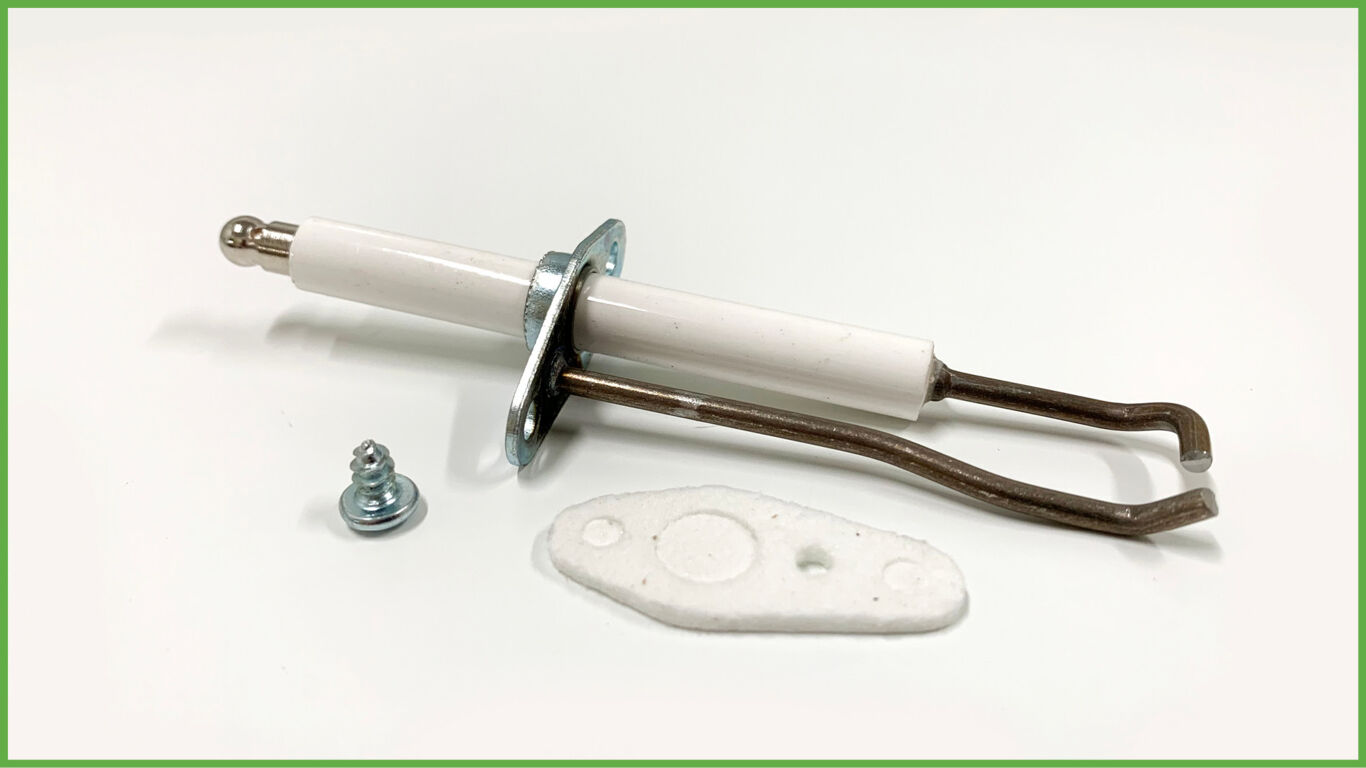

The maintenance kits consist of the spark igniter and flame detector (with gaskets) for each module. The fireside inspection kits consist of the spark igniter, flame detector, and burner gasket for each module. For models MLX 303-1060, the fireside inspection kits also include flue collector gasket, and exhaust connector gasket. NOTE: The fireside inspection kit already includes the components included in the maintenance kit — therefore, when performing the fireside inspection, you only need the fireside inspection kit, not both. The below TID documents can be found on the AERCO Learning Management System (LMS).
| Maintenance Kits | Part Number | Technical Instructions |
|---|---|---|
| MLX-303 Annual | 58019-01 | TID-0026 |
| MLX-454 Annual | 58019-02 | TID-0026 |
| MLX-606 Annual | 58019-03 | TID-0026 |
| MLX-757 Annual | 58019-04 | TID-0026 |
| MLX-909 Annual | 58019-05 | TID-0026 |
| MLX-1060 Annual | 58019-06 | TID-0026 |
| MLX-303 24-mon Fireside inspection | 58019-07 | TID-0027 |
| MLX-454 24-mon Fireside inspection | 58019-08 | TID-0027 |
| MLX-606 24-mon Fireside inspection | 58019-09 | TID-0027 |
| MLX-757 24-mon Fireside inspection | 58019-10 | TID-0027 |
| MLX-909 24-mon Fireside inspection | 58019-11 | TID-0027 |
| MLX-1060 24-mon Fireside inspection | 58019-12 | TID-0027 |
| MLX EXT 321 Annual | 58086-01 | TID-0124 |
| MLX EXT 450/481 Annual | 58086-02 | TID-0124 |
| MLX-EXT 600/641 Annual | 58086-03 | TID-0124 |
| MLX EXT 800/802 Annual | 58086-04 | TID-0124 |
| MLX EXT 962 Annual | 58019-05 | TID-0124 |
| MLX EXT 1100/1123 Annual | 58019-06 | TID-0124 |
| MLX EXT 321 24-mon Fireside inspection | 58086-12 | TID-0124 |
| MLX EXT 450/481 24-mon Fireside inspection | 58086-13 | TID-0124 |
| MLX EXT 600/641 24-mon Fireside inspection | 58086-14 | TID-0124 |
| MLX EXT 800/802 24-mon Fireside inspection | 58086-15 | TID-0124 |
| MLX EXT 962 24-mon Fireside inspection | 58086-16 | TID-0124 |
| MLX EXT 1100/1123 24-mon Fireside inspection | 58086-17 | TID-0124 |
| MLX EXT 1500/1530 Annual | 58086-03 | TID-0124 |
| MLX-EXT 1912 Annual | 58086-04 | TID-0124 |
| MLX EXT 2300/2295 Annual | 58086-05 | TID-0124 |
| MLX EXT 2600/2677 Annual | 58086-06 | TID-0027 |
| MLX EXT 3000/3060 Annual | 58086-11 | TID-0124 |
| MLX EXT 1500/1530 24-mon Fireside inspection | 58086-18 | TID-0124 |
| MLX-EXT 1912 24-mon Fireside inspection | 58086-19 | TID-0124 |
| MLX EXT 2300/2295 24-mon Fireside inspection | 58086-20 | TID-0124 |
| MLX EXT 2600/2677 24-mon Fireside inspection | 58086-21 | TID-0124 |
| MLX EXT 3000/3060 24-mon Fireside inspection | 58086-22 | TID-0124 |
Click here to view the Modulex EXT maintenance kit sell sheet
