AM Series Maintenance and Waterside/Fireside Inspection Kits

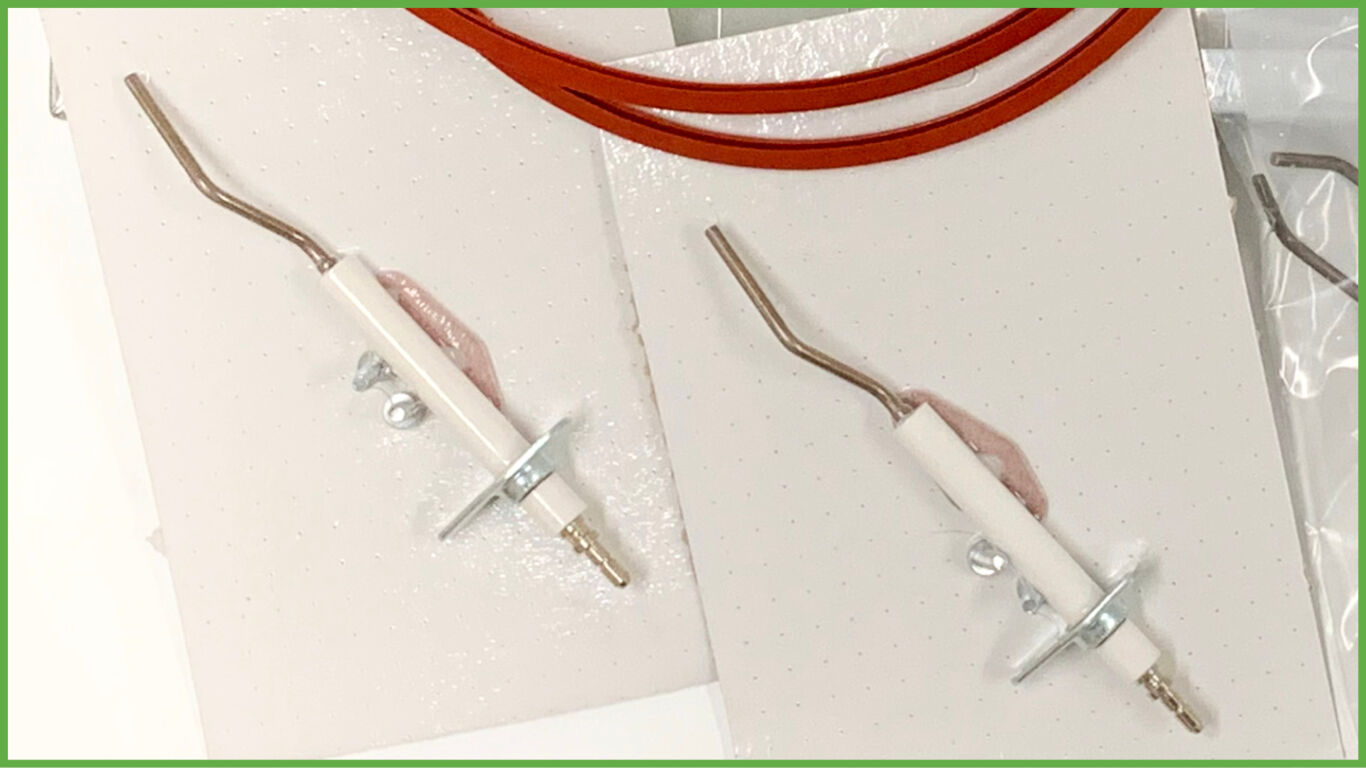

The maintenance kits consist of the spark igniter and flame detector (with gaskets) for each module.

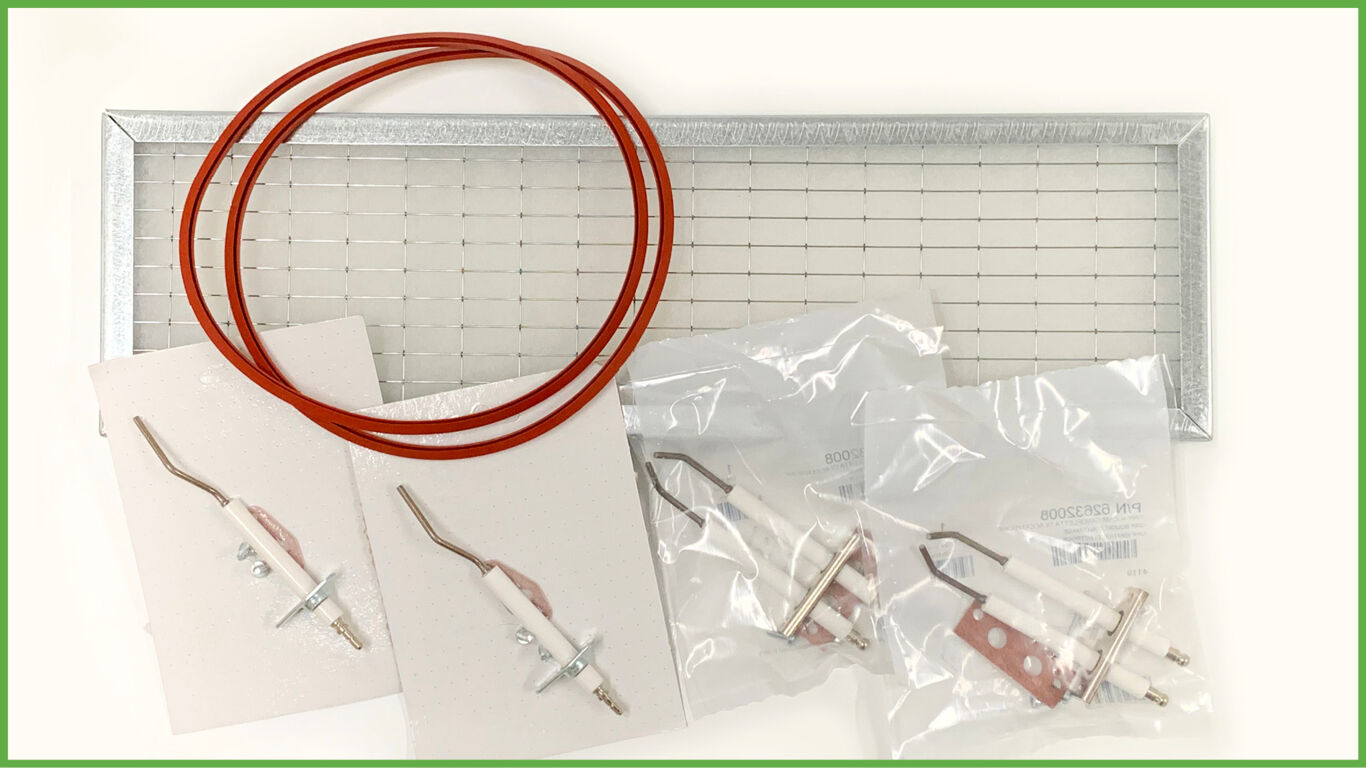

The fireside inspection kits consist of the spark igniter, flame detector, burner gasket for each module, and air filter.

NOTE: The fireside inspection kit already includes the components included in the maintenance kit — therefore, when performing the fireside inspection, you only need the fireside inspection kit, not both.

The below TID documents can be found on the AERCO Learning Management System (LMS).

Maintenance Kits Part Number Technical Instructions
AM 199/250 Annual 58109-07 TID-0169
AM 399/500 Annual 58109-01 TID-0169
AM 750 Annual 58109-02 TID-0169
AM 1000 Annual 58109-03 TID-0169
AM 199/250 24-mon Fireside inspection 58109-08 TID-0169
AM 399/500 24-mon Fireside inspection 58109-04 TID-0169
AM 750 24-mon Fireside inspection 58109-05 TID-0169
AM 1000 24-mon Fireside inspection 58109-06 TID-0169
