Innovation 1060
OVERVIEW

Innovation 1060

Once again, AERCO leads the way in commercial water heating technology with the introduction of Innovation, its newest line of premium water heaters. Featuring a tankless design, advanced condensing & modulating technology, and a scale-resistant heat exchanger, Innovation delivers performance and economic advantages to any system.

Click here to see the Innovation Product Video

• Up to 99% efficiency
• +/-4° temperature control, thanks feed-forward sensing and unmatched turndown
• High reliability
• Small footprint due to its tankless design
• Reduced standby and cycling losses
• Low NOx
Efficiencies up to 99%
The AERCO Innovation Water Heater utilizes state-of-the-art technology to easily meet highly diverse, demanding commercial and industrial hot water requirements in a compact and reliable condensing design. The durable, high efficient, helical firetube heat exchanger is time tested to be impervious to thermal stress for an extended life. The all stainless steel construction maximizes longevity in the condensing application and the corrugated tubes increase effective heat transfer surface area for optimal thermal efficiencies up to 99%. Enhanced waterside flow distribution maintains constant minimum velocities across the heat exchanger; this keeps solids in suspension and greatly reduces scale dropout to maintain high-efficiency performance and long life.

Precise Temperature Control and up to 20:1 Turndown Delivers Money-Saving Precision

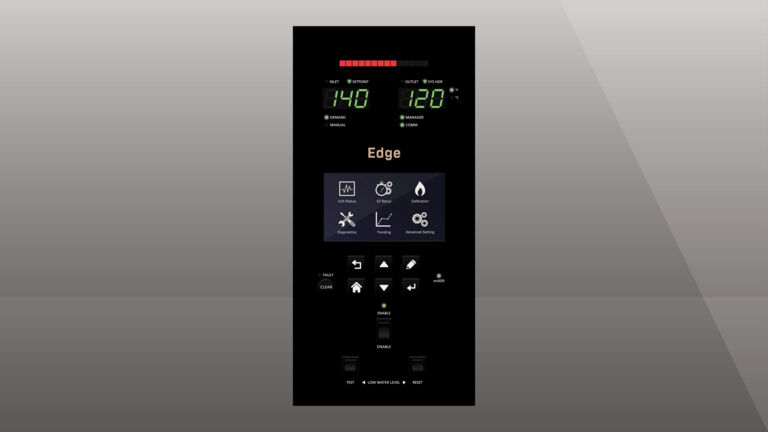

The advanced control system incorporates dynamic feed-forward sensing for precise modulation of its high turndown air/fuel delivery system. These controls fire the unit to accurately match load requirements and produce a tight hot water outlet temperature control. With up to 20:1 turndown, the AERCO Innovationtakes maximum advantage of its thermal efficiency, eliminating wasted fuel and reducing operating costs.

Commercial Tankless Design:
The unique tankless design gives the ability to operate the system with set points of 120°F or below – saving energy and reducing the risk of scalding.  Minimal water volume and maintaining continuous circulation through the unit virtually eliminate the risk of Legionella bacteria growth.

Venting Versatility:
Sidewall, through–the–roof, and sealed combustion capabilities provide broad installation flexibility and savings.

Space-Saving Design:

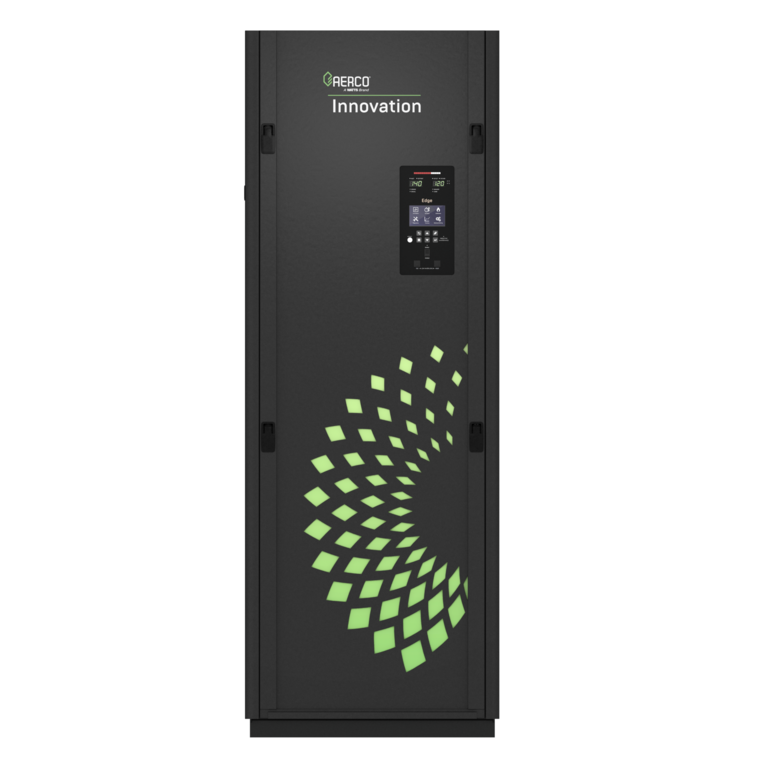

The AERCO Innovation is delivered as a single, fully assembled unit. Its small foot print, doorway size, and quiet operation make it ideal for both new construction and retrofit applications.
Product Options
Double Block and Bleed Gas Train (formly IRI) - Incorporates two safety shut-off valves in a single valve body with normally open vent valve.

Reduced NOx Level- AERCO recommended calibration points can be re-set to support applications that require reduced NOx emissions level of <9ppm. However, the unit's input rate, performance efficiency and venting requirements will change. Please consult the factory for assistance balancing your efficiency and environmental requirements.
ACCESSORIES
Domestic Water Storage Tank- AERCO storage tanks are ASME certified glass-lined pressure vessels designed for use with instantaneous water heaters. When contending with challenging applications they assure consistent hot water service during peak demands. The AERCO storage tanks are available in stratified or accumulator storage configurations.

Gas Supply Regulator-
·    Non-lock-up regulators for gas pressure < 14" W.C.
·    Lock-up regulators for gas pressures > 14" W.C.

Communications Gateway - optional accessory supports heater communication with your facilities BACnet, LonWorks and N2 systems.

AERCO Condensate Neutralizer Kit- is ideal for neutralizing condensate from condensing boilers and furnaces operating on natural gas or propane.

Literature & Performance Data
File Type View Save File Type View Save
INN 1060 Technical Data Sheet .pdf • •
Water Side Pressure Drop and Velocity (D310.0) .pdf • •
Altitude DeRate Factors D300.0 .pdf • •
Emissions Data D601.0 .pdf • •
Innovation Family Brochure .pdf • •
Innovation Water Heater Management (WHM) Technical Data Sheet .pdf • •
Sizing & Application Guidelines
File Type View Save File Type View Save
Innovation Gas Supply Guide (GF-5030) .pdf • •
Innovation Venting Guide (GF-5050) .pdf • •
Innovation Power Guide (GF-5060) .pdf • •
Innovation Laundry Sizing Guide (GF-5080) .pdf • •
Innovation Sizing Guidelines .pdf • •
Plumbing Fixture Unit Selection Tool.xlsx .xlsx • •
Product & Component Drawings
File Type View Save File Type View Save
Condensate Trap Assembly (AP-A-814) .pdf • • .dwg • •
Innovation Parts and Accessories .pdf • •
Bill of Materials - Air/Fuel Delivery System (PL-A-164) .PDF • •
Bill of Materials - Burner Intake Manifold (PL-A-165) .PDF • •
Bill of Materials / Part List (PL-A-167) .PDF • •
Gas Trains
Standard FM (AP-A-896) .PDF • •
Double Block & Bleed / IRI (AP-A-897) .PDF • •
Supply Gas Regulators
Jeavons J48 1 1/2" NPT 14" to 20" WC Inlet Pressure (SD-A-629) .pdf • • .dwg • •
Jeavons J48 1 1/4" 20" WC to 1.5 PSI Inlet Pressure (SD-A-630) .pdf • • .dwg • •
Jeavons J48 1" NPT 1.5 to 2.0 PSI Inlet Pressure (SD-A-631) .pdf • • .dwg • •
Maxitrol RV-81 9" to 14" WC inlet pressure (SD-A-641) .pdf • • .dwg • •
Dimensional Drawings
Innovation Water Heater (AP-A-888) .pdf • • .dwg • •
Dimensional with Water Heater Sequencing Valve (AP-A-902) .pdf • • .dwg • •
3D Models
Revit Solid 3-D Model INN1060 .rfa • •
Innovation Revit Drawings .rfa • •
Innovation with Sequencing Valve Revit Drawing .rfa • •
Valves
Temperature & Pressure Relief Valve (AP-A-890) .PDF • • .DWG • •
2" Domestic Hot Water Ball Valve (SD-A-918) .pdf • •
Installation & Piping Drawings
File Type View Save File Type View Save
Clearance for Standalone Unit Placement (SD-A-834) .pdf • • .dwg • •
Clearance for Side-by-Side Unit Placement (SD-A-835) .pdf • • .dwg • •
Single Heater
Single Unit Installation (SD-A-829) .pdf • • .dwg • •
Stratified Storage Tank Installation (SD-A-830) .pdf • • .dwg • •
Stratified Peak Storage Tank for 2 Temperature Zone Installation (SD-A-831) .pdf • • .dwg • •
Single Unit Installation with 2 Temperature Zones (SD-A-845) .pdf • • .dwg • •
Multiple Heater
Multiple Unit Installation (SD-A-832) .pdf • • .dwg • •
Installation with Stratified Storage Tank (SD-A-833) .pdf • • .dwg • •
Installation with 2 Temperature Zones (SD-A-836) .pdf • • .dwg • •
Installation with Stratified Storage Tank and 2 Temperature Zones (SD-A-837) .pdf • • .dwg • •
Two Zero Side Clearance and 1 Separate (SD-A-838) .pdf • • .dwg • •
Two Pairs with Zero Side Clearance (SD-A-841) .pdf • • .dwg • •
Two Pairs with Zero Side Clearance and Stratified Storage Tank (SD-A-842) .pdf • • .dwg • •
Two Pairs with Zero Side Clearance and 2 Temperature Zones (SD-A-843) .pdf • • .dwg • •
Two Pairs with Zero Side Clearance, 2 Temperature Zones and Stratified Storage Tank (SD-A-844) .pdf • • .dwg • •
Multiple Unit Installation with Sequencing Valves (SD-A-848) .pdf • • .dwg • •
Installation with Stratified Storage Tank and Sequencing Valves (SD-A-849) .pdf • • .dwg • •
Installation with Stratified Storage Tank and 2 Temperature Zones w/ Sequencing Valves (SD-A-850) .pdf • • .dwg • •
Two Zero Side Clearance and 1 Separate with Sequencing Valves (SD-A-851) .pdf • • .dwg • •
Two Pairs, Zero Side Clearance with Sequencing Valves (SD-A-852) .pdf • • .dwg • •
Two Pairs with Zero Side Clearance and Stratified Storage Tank with Sequencing Valves (SD-A-853) .pdf • • .dwg • •
Two Pairs with Zero Side Clearance, 2 Temperature Zones and Sequencing Valves (SD-A-854) .pdf • • .dwg • •
Two Pairs with Zero Side Clearance, 2 Temperature Zones, Stratified Storage Tank and Sequencing Valves (SD-A-855) .pdf • • .dwg • •
Two Pairs with Zero Side Clearance, 2 Temperature Zones and Sequencing Valves (SD-A-856) .pdf • • .dwg • •
Two Zero Side Clearance and 1 Seperate Two Temperature Zones and Sequencing Valves (SD-A-939) .pdf • • .dwg • •
Two Unit Installation and Sequencing Valves (SD-A-941) .pdf • • .dwg • •
Two Unit Installation with Stratified Storage and Sequencing Valves (SD-A-940) .pdf • • .dwg • •
Two Zero Side Clearance and 1 Seperate with Stratified Storage Tank and Sequencing Valves (SD-A-964) .pdf • • .dwg • •
Controls
File Type View Save File Type View Save
C-More Wiring Diagram - BAS to C-More (SD-A-659) .pdf • • .dwg • •
C-More Wiring Diagram- Water Heater Management (SD-A-878) .pdf • •
Specifications
File Type View Save File Type View Save
Natural Gas CI Specification .doc • •
Propane CI Specification .doc • •
Certifications/Approvals
File Type View Save File Type View Save
SCAQMD Approval Letter .pdf • •
INNOVATION Efficiency Letter .pdf • •
INNOVATION UL Listing .pdf • •
Warranty
File Type View Save File Type View Save
Innovation Limited Warranty .pdf • •

Operation & Maintenance
File Type View Save File Type View Save
Innovation GF-128 O&M Manual (G-12-1152_and UP) 05-09-2013 .pdf • •
Innovation GF-128 O&M Manual (G-10-1350 to G-11-0563) .pdf • •
